JAFperformance

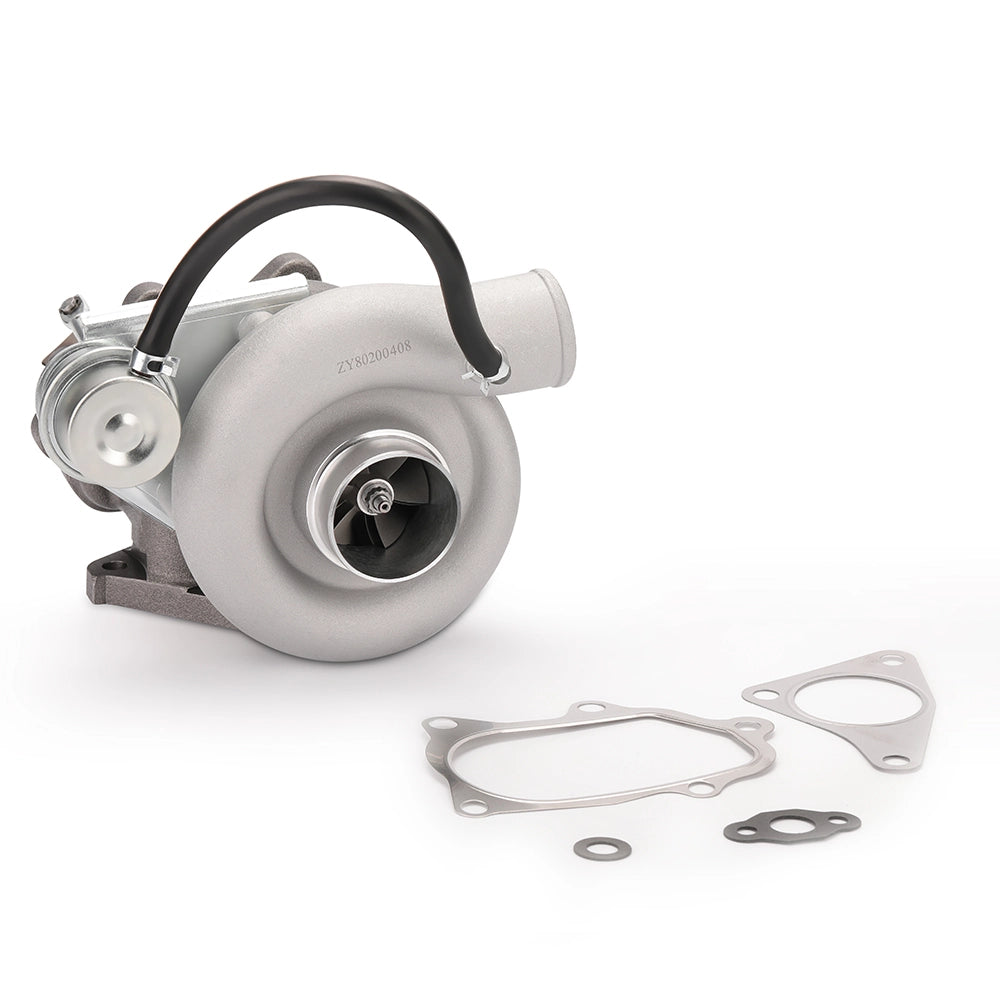

TD05 Turbo

TD05 Turbo

€290,00 EUR
€290,00 EUR
Sale Sold out
Tax included.

<head><meta charset="UTF-8" /></head>

Specification

Exhaust Outlet Flange:5-Bolt Flange
Exhaust Intlet Flange:3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm

Oil Inlet: M10*1.5
Oil Outlet: M15 & 2*M6H
Water: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Thrust Bearing:270 degree
Hosepower: Up to 380 HP
Turbo Type:Individual
Condition: 100% Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g

Package included

1xTurbocharger
2xFlange gaskets
4xOil/Water port gaskets
