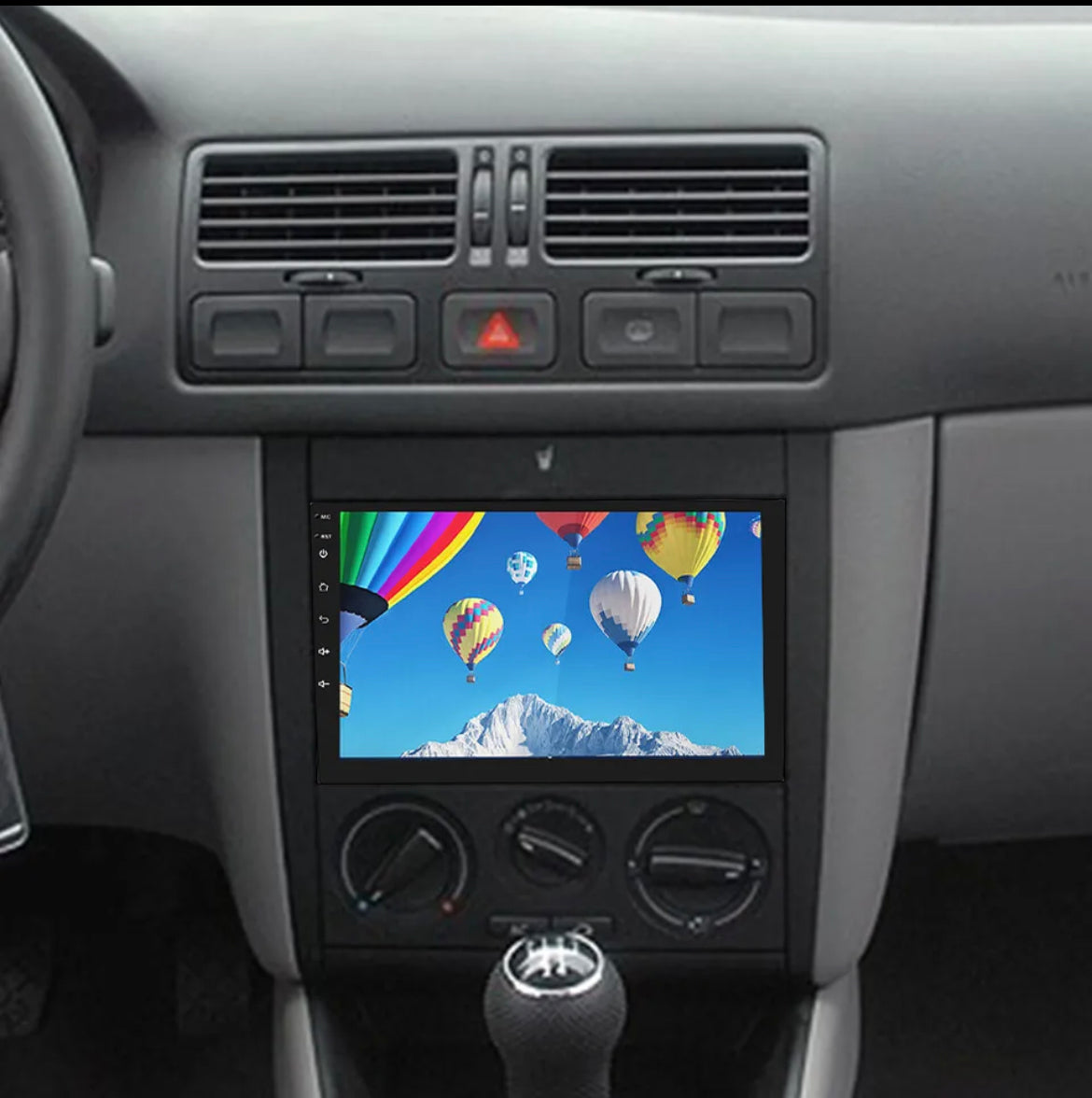

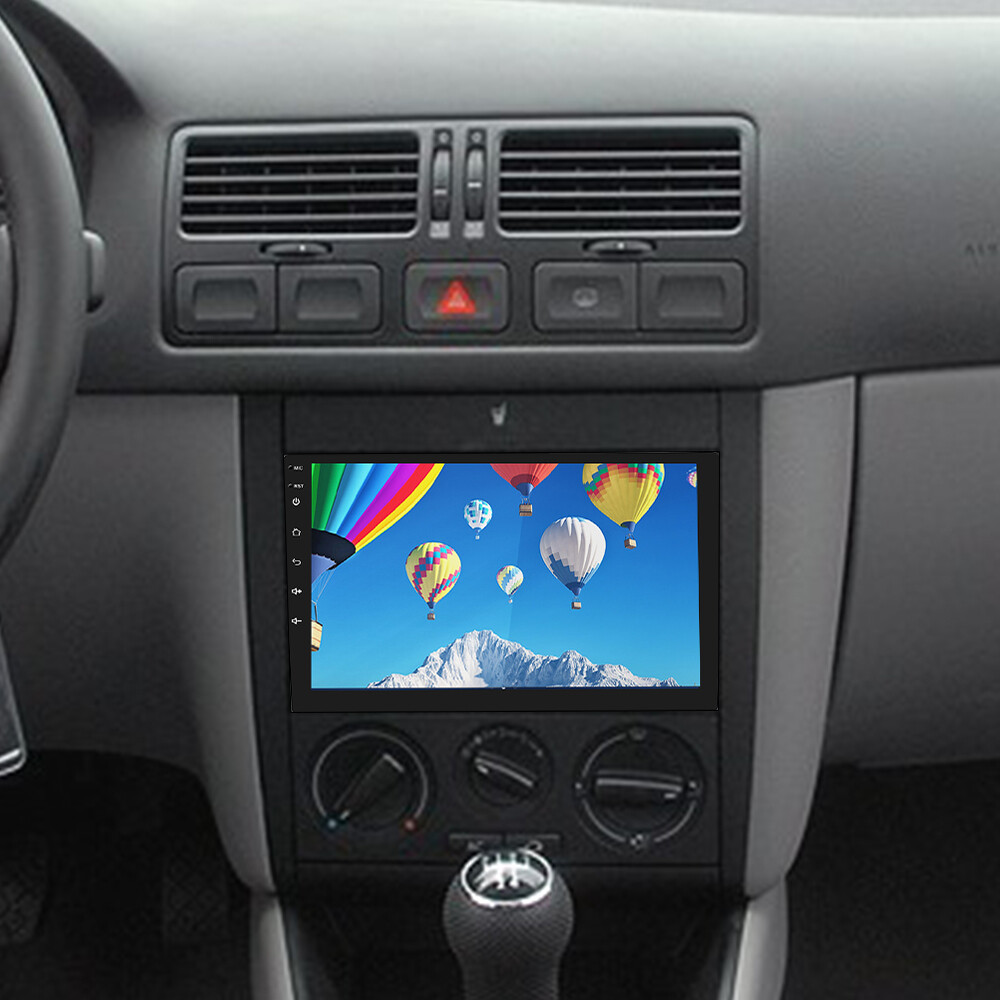

9" Android 11 GPS Nav Radio Stereo Bluetooth For VW Golf 4 MK4 Passat B5 Bora T5

Features:

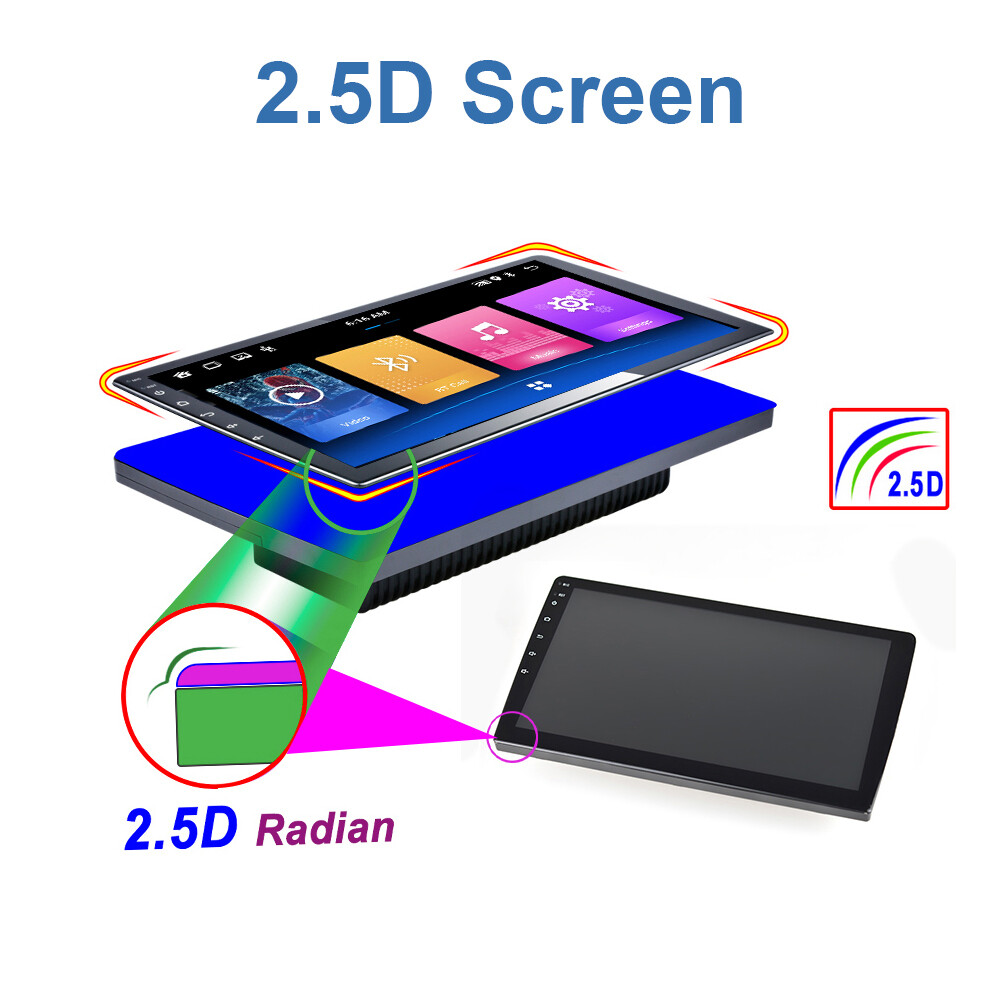

●HD 9''  2.5D Tempered Glass Mirror auto radio  player

●Built-in GPS Navigation: Users can purchase directly from play store for offline navigation. With wifi connected, Google Maps can be used perfectly, you can go anywhere you want and never get lost again.
●High definition 1080P: Full capacitance touch screen for easy operation, well designed user interface for car only
●Built-in WIFI: Connect to WIFI, and you will find a new world，the most convenient one is the online map.
●Rear camera: support AHD high-definition 720P camera image input，you can switch between CVBS and AHD simply by choosing in the settings(requires optional)
●Hi-Fi function: High fidelity, reproduced sound highly similar to your original sound
●Steering wheel control: Through it you can control the functions you need by steering wheel, more convenient
●Built-in Bluetooth with A2DP/Hands Free/Phone book:Bluetooth hands-free calls,Bluetooth music player,Auto loading phonebooks
●Driving recorder: You can choose a recorder, and the car has playback, the evidence can be retained(requires optional)
●Double USB adapter input
●Support file manager: Support download, install and delete over thousands of android apps
●Support multilanguage: Support languages, up to 40 national languages
●You can enjoy music from you mobilephone without any cables, and also support USB connetion.
●FM Radio: Online music you can transfer the music to the car stereo by FM to enjoy the original car stereo sound,with 18 preset stations
●Time Setting:You can use the network or GPS to open the date and time automatically, or you can adjust it manually.
●Support external microphone

Specifications：

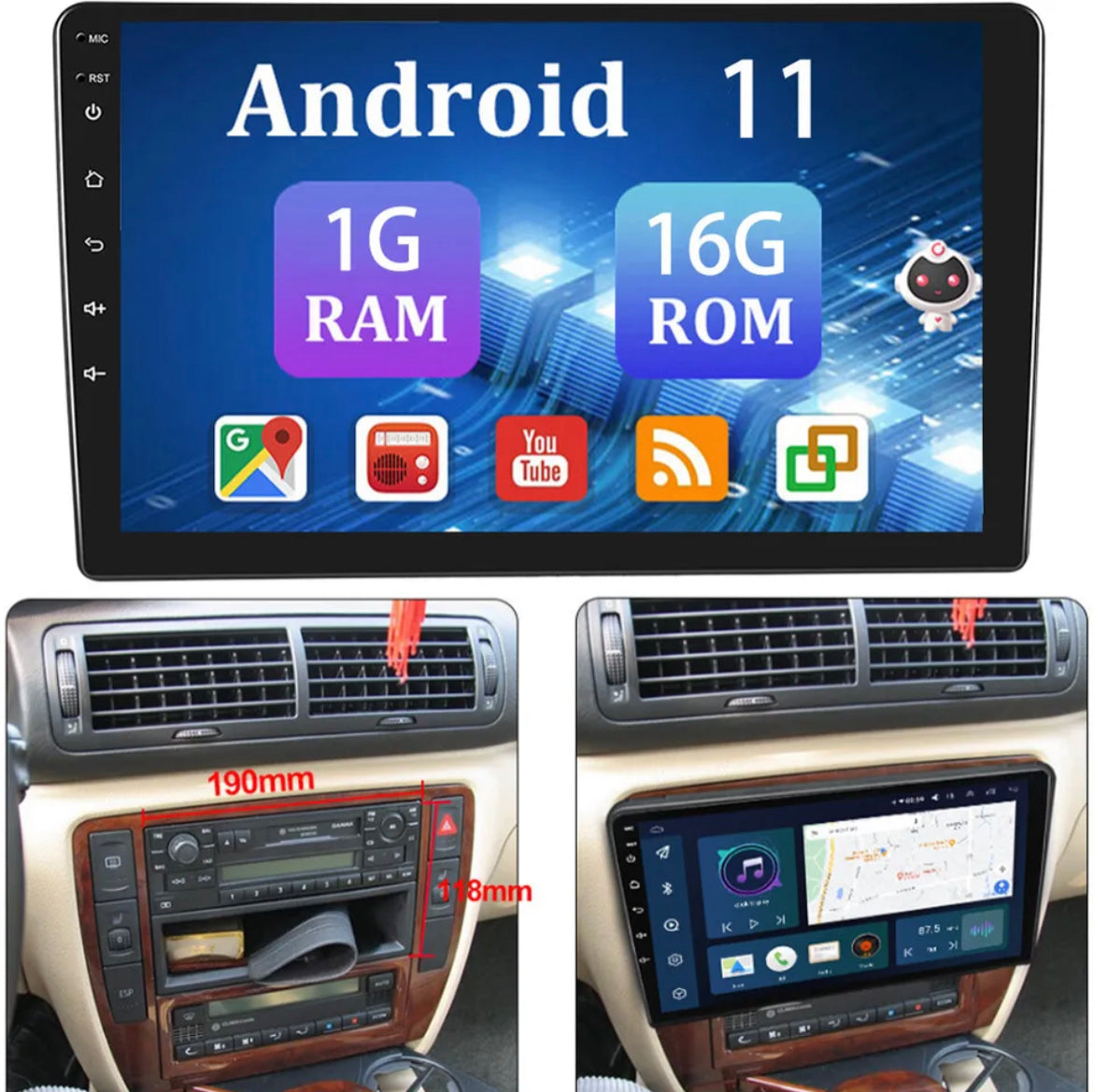

System:Android 11
Chipset:8227L-DEMO
Screen size:9''

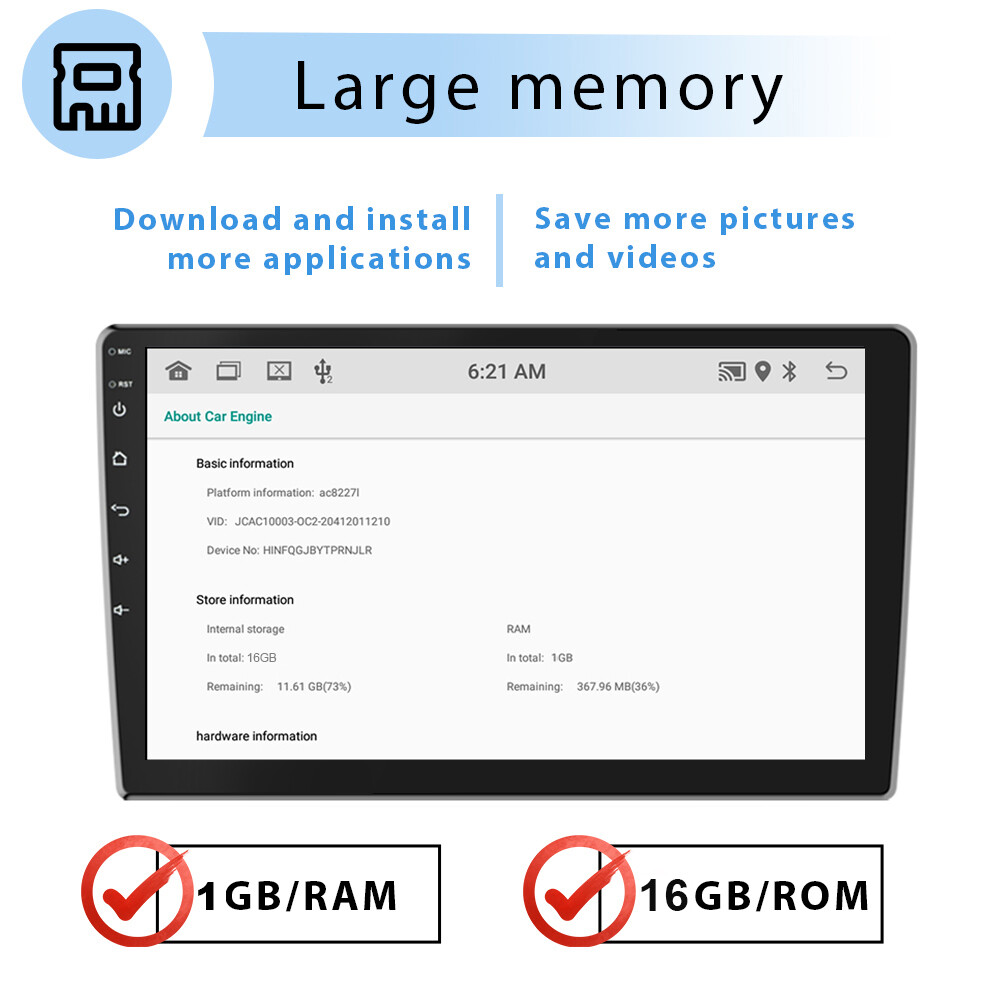

Memory:1GB (RAM)+16GB (ROM)
Screen resolution:1024*600
Radio chip:MT6625
Power output:4*45W
Work temperature:-20℃-75℃
Steering wheel control function:Support
Power amplifier chip:TDA7388
Radio Band:FM/RDS
Video output:Support
Reversing input: AHD/CVBS
External microphone: support
Split screen: support
Maps:Built-in offline maps(requires internet to download data)
WIFI:Support
USB:Double USB interface
Audio format:APE/FLAC/WAV/MP3/WMA etc
Video format:MKV/RMVB/AVI/MP4/MDV etc
Picture format:PNG/JPEG/JPG/GIF/WBMP/BNP etc
Factory setting keyword:8888
Language:Chinese/English/French/Italian/Korean/Japanese/Arabic/Spanish/Portuguese/Russian/Turkish/Vietnamese/Hebrew/Polish/German

Package Included:
1 x Car MP5 Player

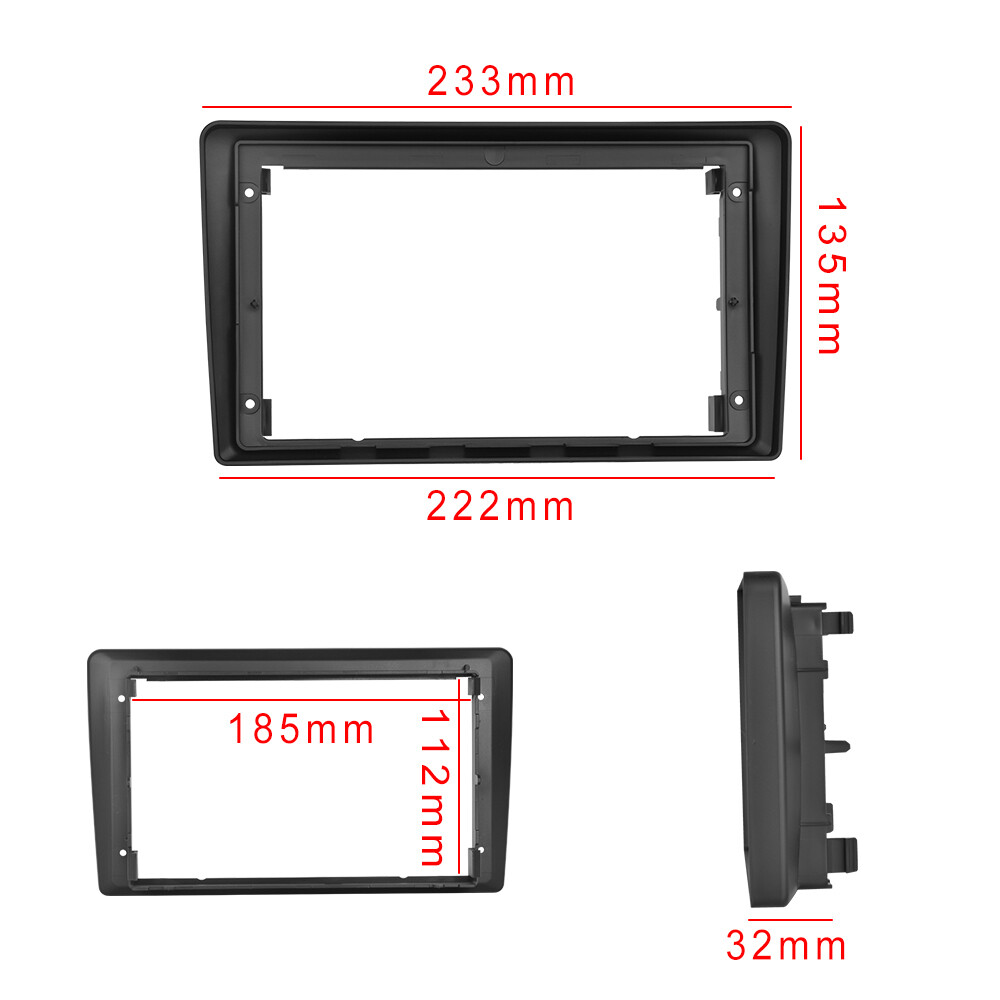

1 X Frame
1 x Power Cable
1 x GPS Antenna
1 x Rear Camera lnput Cable
1 x RCA Cable
2 x USB Cable
2 x Mounting Bracket
4 x Screw
1 x  Instruction manual

Tips:
1.Why can't turn on the car radio ?
1.1Please check the Voltage of car radio:12V
1.2When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
1.3Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

2.Why the car radio will show "No Signal" when we reversing?
Please check if the camera's line is properly connected to the car radio.
Note:The video port of rear camera must insert the "CAMIN" port of car radio.

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?
Please turn off the "Video Warning" function in the settings,then will be OK.

4.Why can't search FM?
4.1: No radio antenna inserted;
4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;
4.3: The signal of your location is not good. Please go to a better place to test again
4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5.Why can't connect the Bluetooth of car radio?
5.1 Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
5.2 Please try to use another mobile phone to test this function.
All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minute
